LPG multistage Centrifugal pump

FOB Reference Price:Get Latest Price
$1,100.00 - $1,200.00 / Piece | 1 Piece/Pieces (Min. Order)
Type:
Centrifugal Pumps
Maximum Flow Rate:
85L/min
Horsepower:
4kw
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 10 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
COWELL
Model Number:
DB-65
Structure:
LPG side channel multistage pump
Pressure:
High Pressure
Product Name:
LPG side channel multistage pump
Standard or Nonstandard:
Standard
Material:
Cast Iron
Power:
Electric
Usage:
LPG side channel multistage pump
Application:
LPG side channel multistage pump
Fuel:
lpg gas
Supply Ability
Supply Ability:
500000 Unit/Units per Month 50000000 pcs /year LPG multistage pump
Packaging & Delivery
Packaging Details
standard LPG multistage pump export package
Port
Shanghai / Ningbo
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 10 To be negotiated



Product Description

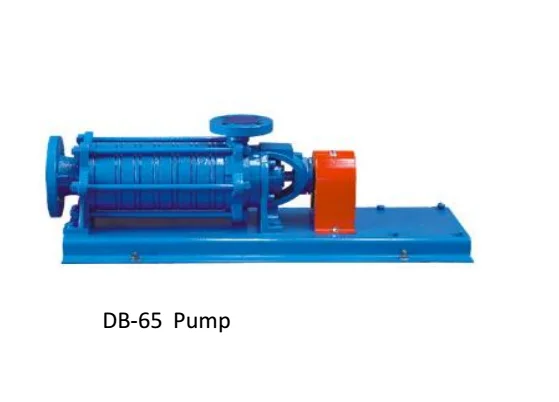

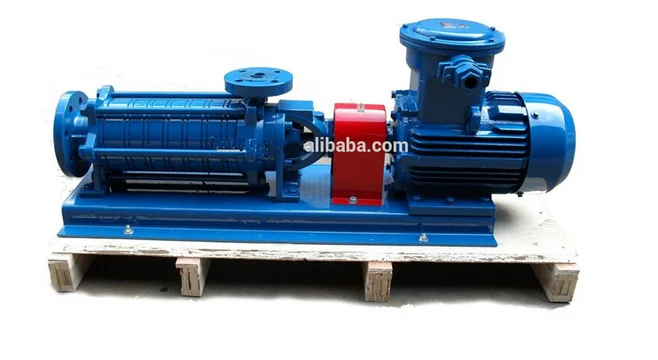

LPG serial side channel multistage pump DB-65





DB-65 pumps are side channel, multicellular, self-priming pumps designed with 6 stages, having a horizontal configuration and offering numerous metallurgical variants.
Shaft sealing by mechanical seal without cooling. The use of a pre-compression
Turbine at the suction end makes it possible to obtain a very small required
NPSH, so that this pump can be used under very difficult suction conditions.

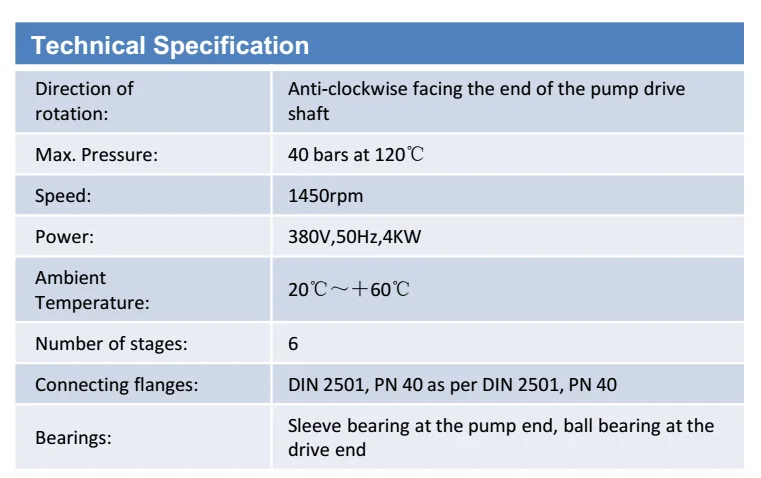

Direction of rotation: Anti-clockwise facing the end of the pump drive shaft
RP: 40 bars
Max. Pressure: 40 bars at 120C
Speed: 1450 rpm
Power: 380V, 50Hz, 4KW
Ambient Temperature: -20ºC -+ 60ºC.
Number of stages: 6
Connecting flanges: As per DIN 2501, PN 40
Bearings: Sleeve bearing at the pump end, ball bearing at the drive end
Lubrication: 1 plain bearing at the pump end lubricated by the pumped product, 1
Ball bearing at the drive end lubricated for life.
